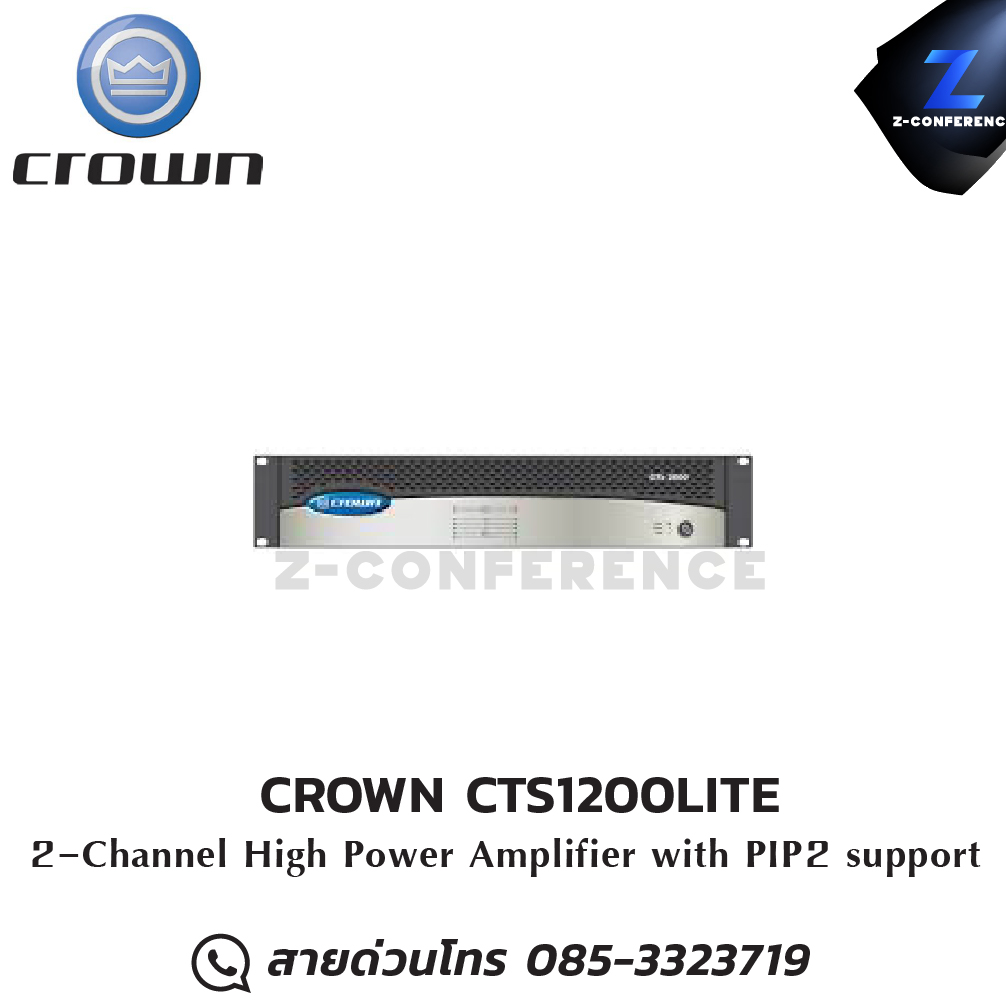

CROWN CTS1200LITE Power Amplifier 2ch. , แอมป์ , amplifier, power amp, power amplifier

Channels              2

Sensitivity              1.4V

Signal to Noise Ratio          105dB (below rated power 20Hz to 20kHz, A-Weighted)

Total Harmonic Distortion  < 0.1% (full rated power,20Hz - 20kHz)

Damping Factor   <3000 (10 Hz to 100Hz)

Frequency Response         ± 0.25dB (at 1W into 4/8 ohms)

Crosstalk               > 80dB

Common Mode Rejection (20Hz to 1Khz)     > 50dB

Maximum Input Level         +20dBu (before input compression)

Load Impedance 70V, 100V (2-16 Ohms)

Voltage Gain        35:1 (31dB) (at maximum level settings) (8/4 ohm operation)

Power Draw at Idle              24W

Power Rating        2-ohm dual (per ch.): 250W

4-ohm dual (per ch.): 600W

8-ohm dual (per ch.): 600W

16-ohm dual (per ch.): 300W

70V dual (per ch.): 600W

100V dual (per ch.): 600W

4-ohm bridge: 500W

8-ohm bridge: 1200W

16-ohm bridge: 1200W

100V bridge: 1200W

140V bridge: 1200W

200V bridge: 1200W

Dimensions (W x H x D)     19 x 3.5 x 14.25 in / 48.3 x 8.9 x 36.2 cm

Weight   22.8 lbs / 10.34 kg
