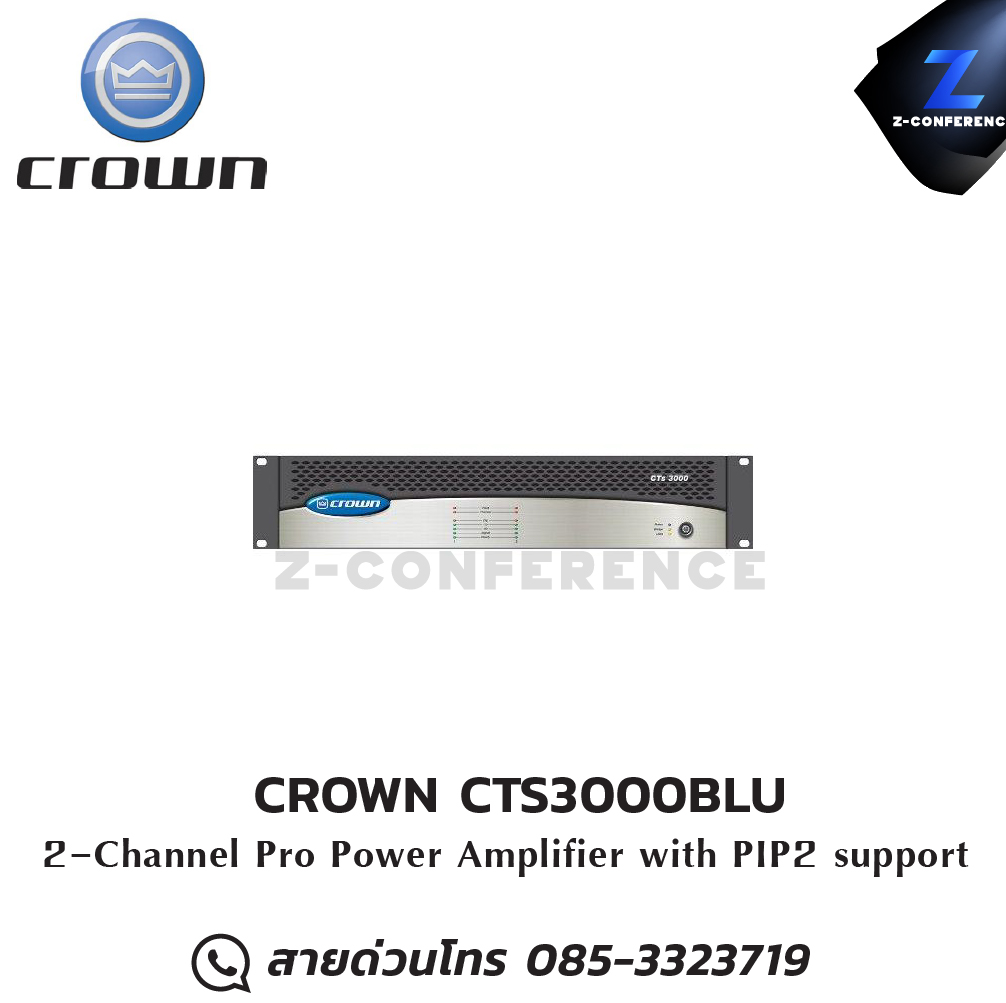

CROWN CTS3000BLU Power Amplifier 2ch. , แอมป์ , amplifier, power amp, power amplifier

Channels              2

Frequency Response         ± 0.25 dB (at 1 watt, 20 Hz - 20 kHz)

Signal to Noise Ratio          < 105 dB (ref. rated power, 20 Hz to 20 kHz, A-weighted)

Total Harmonic Distortion  < 0.35%

Intermodulation Distortion < 0.35%

Damping Factor: 10 Hz to 100 Hz    > 3000

Crosstalk 20 Hz to 1kHz     > 80 dB (below rated power)

Common Mode Rejection 50 dB

DC Output Offset < 2 mV

Input Impedance 10 k ohms,5 k ohms (nominally balanced, nominally unbalanced)

Required AC Mains (+15%, - 25%)  120V/60 Hz, 230V/50 Hz

Power Draw at Idle (120 VAC mains)             35W (Standby Mode)

Overall Group Delay           < 120 microsec

Cooling  Continuously variable speed forced air, front-to-back airflow

Power Rating        2-ohm dual (per ch.): 1500W

4-ohm dual (per ch.): 1500W

8-ohm dual (per ch.): 1250W

16-ohm dual (per ch.): 625W

70V dual (per ch.): 1500W

100V dual (per ch.): 1500W

4-ohm bridge: 3000W

8-ohm bridge: 3000W

16-ohm bridge: 2500W

100V Bridge: 3000W

140V bridge: 3000W

200V bridge: 3000W

Dimensions (W x H x D)     19 x 3.5 x 14.25 in / 48.3 x 8.9 x 36.2 cm

Weight   27.7 lb (12.6 kg)
