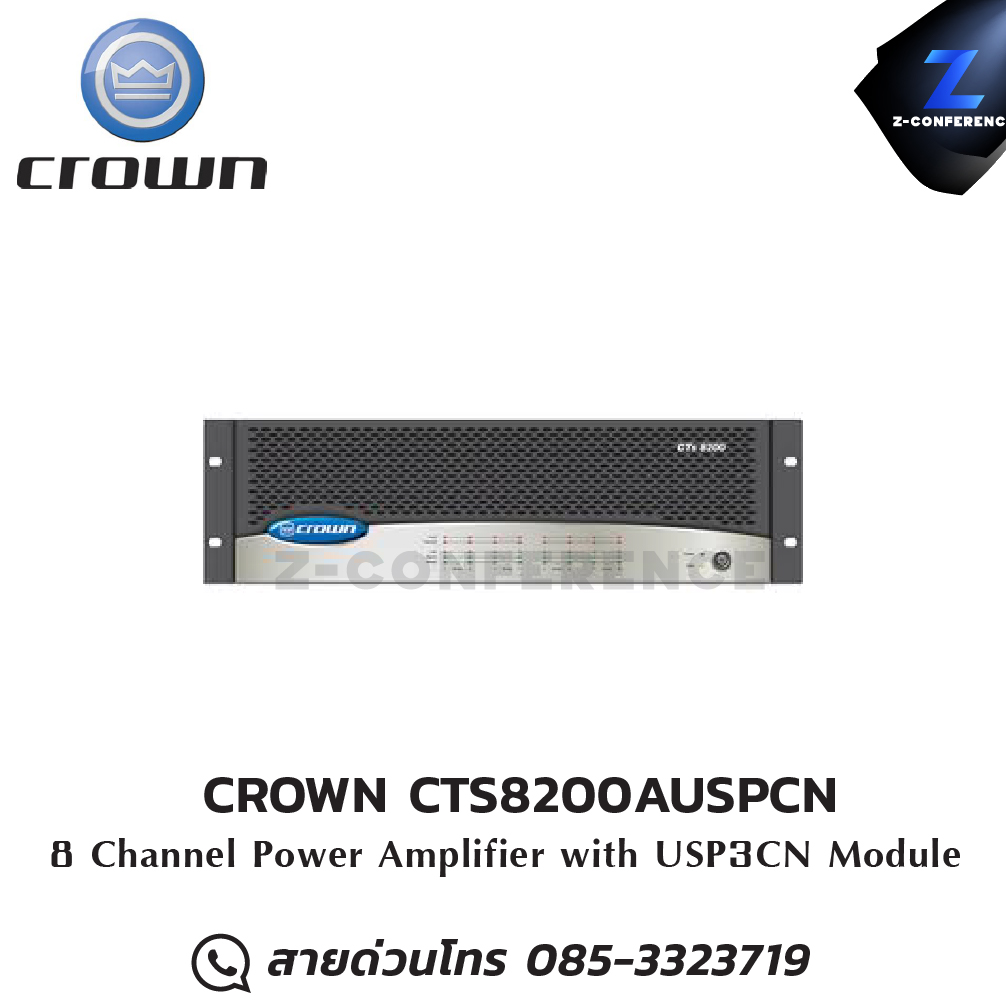

CROWN CTS8200AUSPCN Power Amplifier 8ch. , แอมป์ , amplifier, power amp, power amplifier

Features:

• High power density in a 3RU chassis
• Crown Switching Power Supply for lighter weight
• Selectable "Constant-Voltage" or low-impedance (4/8 ohm) operation per channel on 2-channel models, and per channel-pair on 4-and 8-channel models
• 100V direct outputs
• Legendary Crown class-I (BCA) and AB+B output topologies offer the best in amplifier reliability
• 4- and 8-channel models offer perfect independent power solutions for multi-zoned systems· "FIT" (Fault Isolation Topology) circuitry on 4- and 8-channel models isolates fault conditions without affecting neighboring channels
• Comprehensive array of indicators provide accurate diagnostics
• Multi-channel models accept MC accessory modules

Specifications:

• Frequency Response (at 1 watt, 20 Hz - 20 kHz): ± 0.5 dB
• Phase Response (at 1 watt, 10 Hz - 20 kHz): ± 35°
• Signal to Noise Ratio below rated power (20 Hz to 20 kHz): 100 dB unweighted
• Total Harmonic Distortion (THD) at 1 watt, from 20 Hz to 20 kHz: < 0.05%
• Intermodulation Distortion (IMD) 60 Hz and 7 kHz at 4:1, from 163 milliwatts to full bandwidth power, typical: < 0.05%
• Damping Factor: 10 Hz to 400 Hz: >180
• Crosstalk (below rated power, 20 Hz to 1 kHz): > 80 dB
• Common Mode Rejection (CMR) (20 Hz to 1 kHz): > 50 dB
• DC Output Offset (Shorted input): < ± 5 mV
• Input Impedance nominally balanced, nominally unbalanced: 20 kilohms, 10 kilohms
• Maximum Input Level (before input compression): + 20 dBu
• Load Impedance (Note: safe with all types of loads)
    -  Stereo: 4/8 and 25 ohms (70V)
    -  Bridge Mono: 8/16 and 50 ohms (100V)
• Voltage Gain (at maximum level setting), 1.4V sensitivity
    -  4/8 Ohm Operation: 20:1 (26 dB)
    -  70V Operation: 50:1 (34 dB)
    -  100V Operation: 71.4:1 (37 dB)
• Required AC Mains: 100V, 50/60 Hz. 120V, 60Hz, 220/230/240V, 50Hz
• Power Draw at Idle (120 VAC mains, all channels in 4/8 ohm mode): 70W
• Power Draw at Idle (120 VAC mains, all channels in 70V mode): 114W
• Cooling: Continuously variable speed forced air, front-to-back airflow
• Dimensions (WxHxD): 19" x 5.25" x 16.25"
• Net Weight: 36 lb. 6 oz. (16.5 kg.)
• Shipping Weight: 47 lb. (21.3) kg
