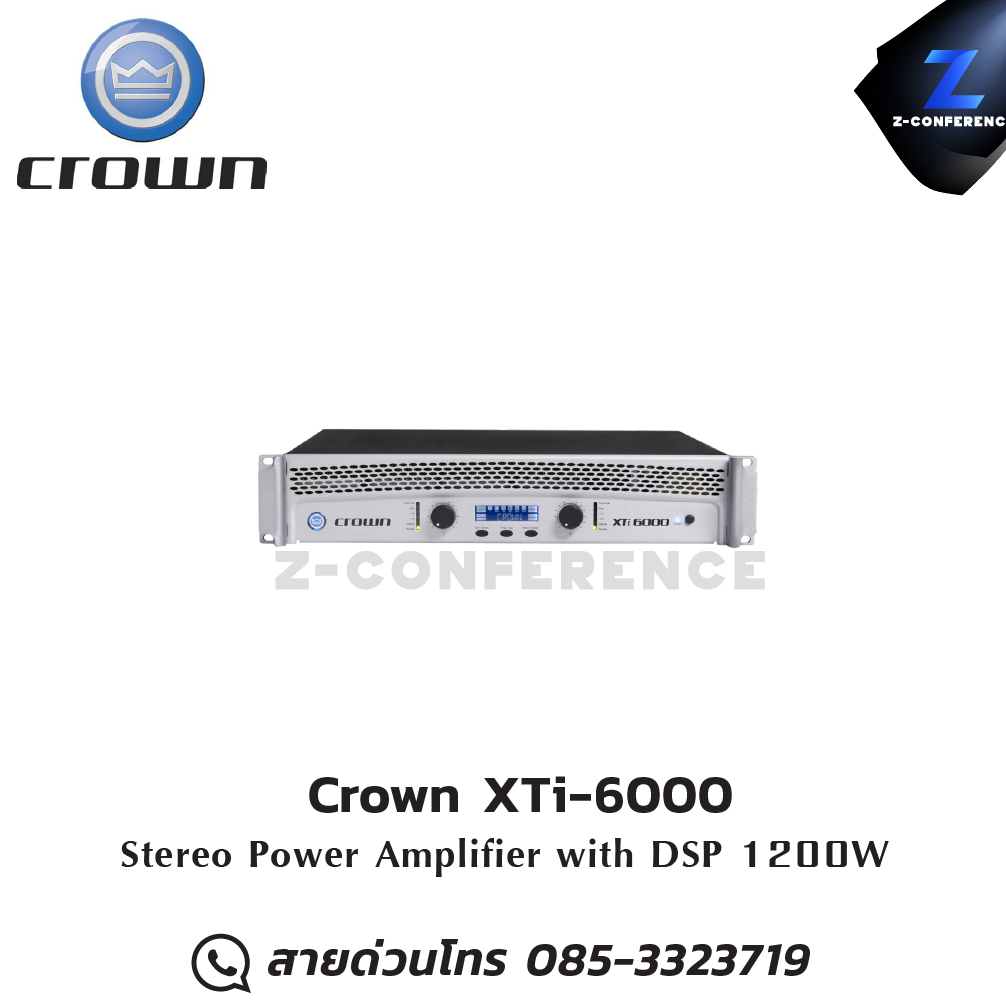

Crown XTi-6000 Stereo Power Amplifier 1200W , แอมป์ , amplifier, power amp, power amplifier

Sensitivity (volts RMS) for full rated power at 4 ohms

1.4V

Frequency Response (at 1 watt into 4 ohms, 20Hz - 20 kHz)

+0/–1 dB

Signal to Noise Ratio (below rated 1 kHz power at 8 ohms), A-weighted

100 dB (103 dB in XTi 6000)

Damping Factor (8 ohm): 20 Hz to 400 Hz

> 500

Input Stage

Input is electronically balanced and employs

precision 1% resistors.

AC Line Current

(120VAC amplifier playing 1/8 power pink noise into 4 ohms per ch)

XTi 1000: 6.8A, XTi 2000: 8.3A, XTi 4000: 10.5A; at idle draws no more than 30 watts.

XTi 6000: 15.3A; at idle draws no more than 180 watts.

Crosstalk (below rated power) 20 Hz to 1 kHz

> 70 dB

Input Impedance (nominal)

20 kilohms balanced, 10 kilohms unbalanced

Load impedance (note: safe with all types of loads)

Stereo

Bridge mono

2-8 ohms (4-8 ohms in XTi 1000 A1 100V versions)

4-16 ohms (8-16 ohms in XTi 1000 A1 100V versions)

Voltage Gain (at 1 kHz, 8 ohm rated output)

XTi 1000: 30.5 dB. XTi 2000: 32.9 dB. XTi 4000: 34.2 dB. XTi 6000: 37.1 dB.

Maximum Input Signal

+22 dBu typical

Operating Temperature

0° C to 40° C at 95% relative humidity

(non-condensing)

AC Line Voltage and Frequency Configurations Available (± 10%)

100V, 120V, 220-240V 50/60 Hz

Ventilation

Flow-through ventilation from front to back

Cooling

Heat sinks and proportional-speed fan

Dimensions: Width, Height, Depth (behind mounting surface)

EIA Standard 19 in. W (EIA RS-310-B) x 3.5 in. (8.9 cm) H x12.25 in. (31.1cm) D

XTi 6000 is 16.2 in. (41.15 cm) D

Net Weight, Shipping Weight

18.5 lb (8.4 kg), 21.5 lb (9.8 kg)

XTi 6000 is 24.0 lb (10.9 kg), 30.0 lb (13.6 kg)
