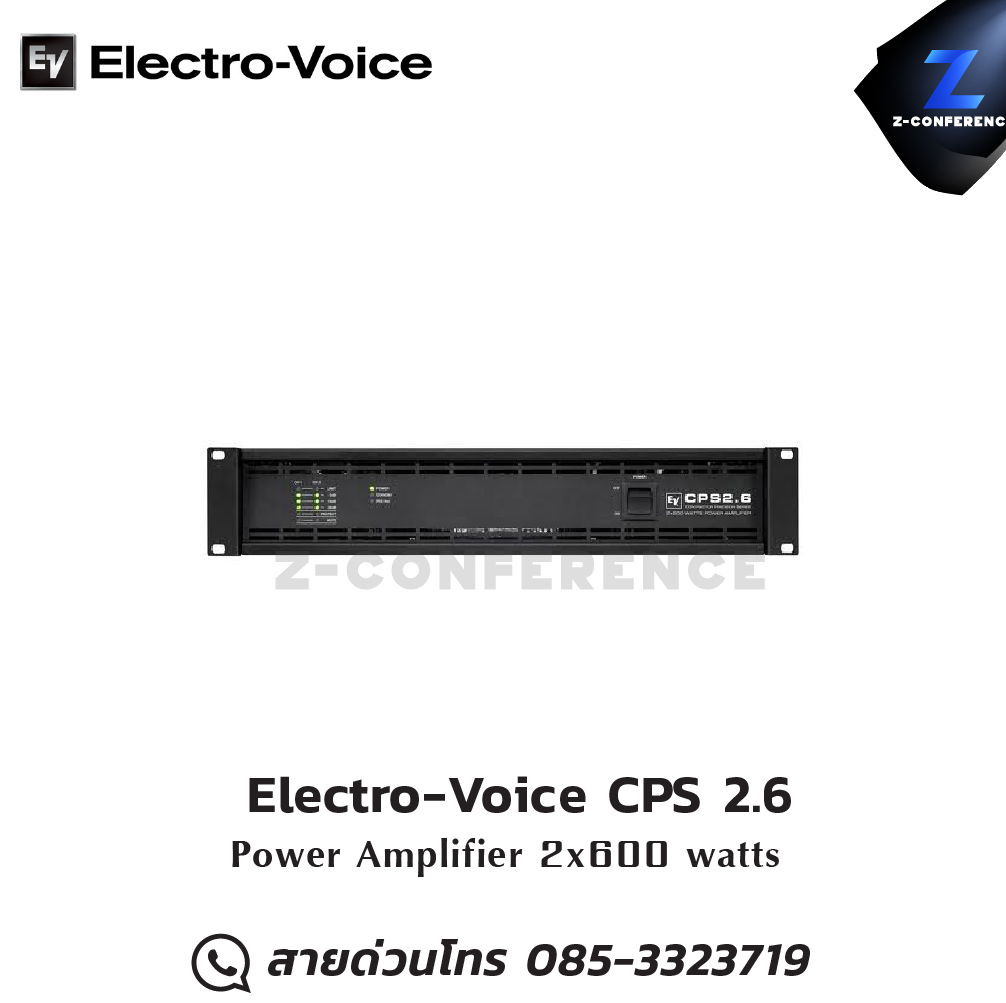

Electro-Voice CPS 2.6 Power Amplifier 2x600W , แอมป์ , amplifier, power amp, power amplifier

Amplifier Gain      32 dB

Analog Inputs       2, electronically balanced, Phoenix-type

Audio Network     No

CAN Bus Interface              Optional (RCM-810 card)

Continuous Rated Power (1kHz, THD 1%) 2Ω              900 Watts

Continuous Rated Power (1kHz, THD 1%) 4Ω              600 Watts

Continuous Rated Power (1kHz, THD 1%) 8Ω              380 Watts

Continuous Rated Power (20-20kHz, THD<0,2%) 4Ω 500 Watts

Continuous Rated Power (20-20kHz, THD<0,2%) 8Ω 250 Watts

Cooling  Front-to-Rear, 3-stage fans

Crossover Type   Optional Modules

DIM 30   0.02 %

Electronics Type  Amplifier

Frequency Response         10 Hz - 40 kHz ±1 dB

Impedance           2/4/8 Ω

Input Impedance (Balanced)            20 kΩ

Input Sensitivity    +3.1 dBu (1.11Vrms)

Intermodulation Distortion (SMPTE)                0.05 %

Mains Voltage      240 V, 230 V, 120 V or 100 V; 50 Hz - 60 Hz (factory configured)

Maximum Bridged Output 4Ω           1800 Watts

Maximum Bridged Output 8Ω           1200 Watts

Maximum Input Voltage     +21 dBu 8.69 Vrms

Network Control (IRIS-Net)                Optional

Slew Rate              26 V/µs

Topology               Class-AB

Total Harmonic Distortion  0.03 %

Variable Load Drive (VLD)                No

Height    2RU 88.1 mm (3.47")

Width      482.6 mm (19")

Depth     421.5 mm (16.59")

Weight Net            14.8 kg (32.63 lbs)
