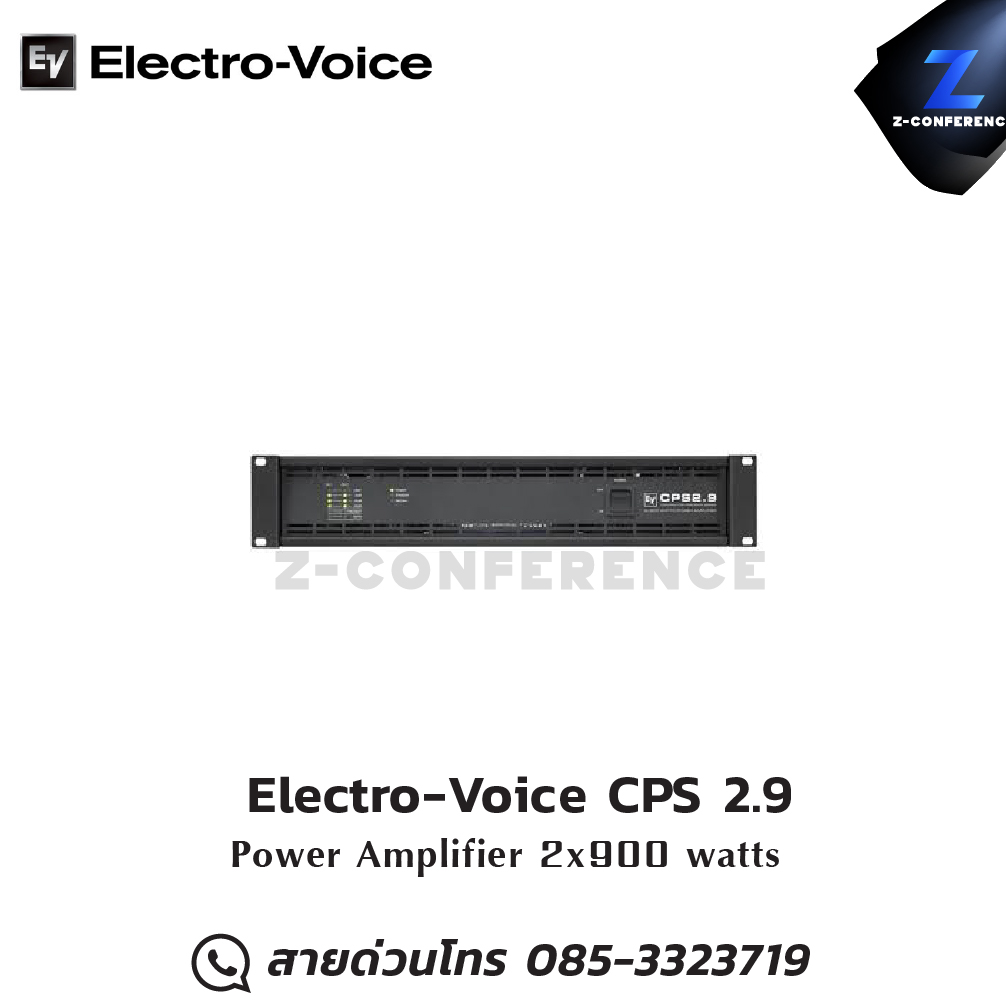

Electro-Voice CPS 2.9 Power Amplifier 2x900W , แอมป์ , amplifier, power amp, power amplifier

Amplifier Gain      32 dB

Analog Inputs       2, electronically balanced, Phoenix-type

Audio Network     No

CAN Bus Interface              Optional (RCM-810 card)

Continuous Rated Power (1kHz, THD 1%) 2Ω              1250 Watts

Continuous Rated Power (1kHz, THD 1%) 4Ω              900 Watts

Continuous Rated Power (1kHz, THD 1%) 8Ω              550 Watts

Continuous Rated Power (20-20kHz, THD<0,2%) 4Ω 800 Watts

Continuous Rated Power (20-20kHz, THD<0,2%) 8Ω 400 Watts

Cooling  Front-to-Rear, 3-stage-fans

Crossover Type   Modular

DIM 30   0.05 %

Electronics Type  Amplifier

Frequency Response         10 Hz - 40 kHz ±1 dB

Impedance           2/4/8 Ω

Input Impedance (Balanced)            20 kΩ

Input Sensitivity    +5.1 dBu (1.39 Vrms)

Intermodulation Distortion (SMPTE)                0.1 %

Mains Voltage      240 V, 230 V, 120 V or 100 V; 50 Hz - 60 Hz (factory configured)

Maximum Bridged Output 4Ω           2800 Watts

Maximum Bridged Output 8Ω           1800 Watts

Maximum Input Voltage     +21 dBu (8.69 Vrms)

Network Control (IRIS-Net)                Optional (RCM-810 card)

Slew Rate              27 V/µs

Topology               Class-H

Total Harmonic Distortion  0.03 %

Variable Load Drive (VLD)                No

Height    2RU 88.1 mm (3.47")

Width      482.6 mm (19")

Depth     421.5 mm (16.59")

Weight Net            16.3 kg (35.94 lbs)
