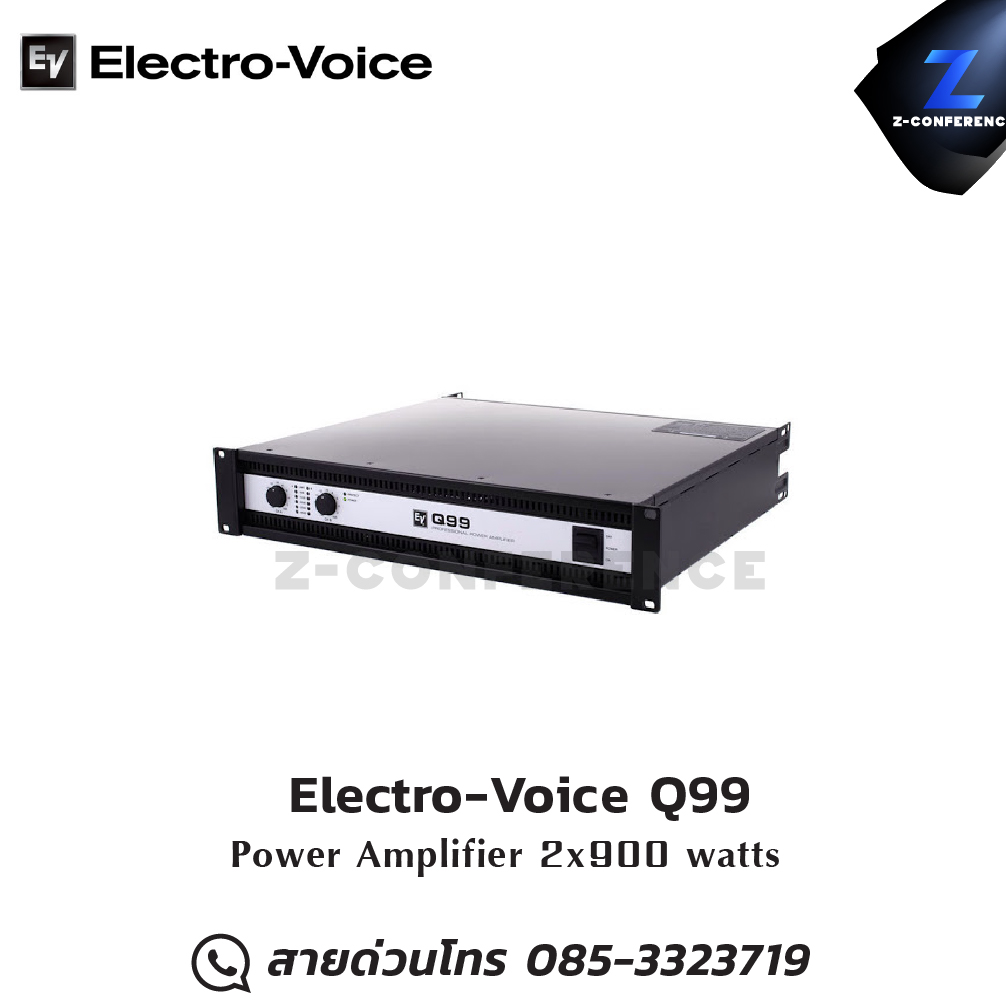

Electro-Voice Q99 Power Amplifier 2x900W , แอมป์ , amplifier, power amp, power amplifier

Maximum Input Voltage

+21 dBu (8.69 Vrms)

Amplifier Gain (dB)

32 dB

Continuous rated power (1k Hz, THD 1%) 2Ω

1250 Watts

Continuous rated power (1k Hz, THD 1%) 4Ω

900 Watts

Input Impedance (balanced)

20 kΩ

Continuous rated power (1k Hz, THD 1%) 8Ω

550 Watts

Continuous rated power
(20-20k Hz, THD<0,2%) 4Ω

800 Watts

Continuous rated power
(20-20k Hz, THD<0,2%) 8Ω

400 Watts

Maximum bridged output 4Ω

2800 Watts

Maximum bridged output 8Ω

1800 Watts

Frequency Response

10 Hz...40 kHz

Slew Rate

> 27 V / µs

Mains Voltage

100 V, 120 V, 230 V or 240 V; 50-60 Hz (factory configured)

Cooling

Front-to-rear, 3-stage fans

Electronics Type

Amplifier

Network Control (IRIS-Net)

No

Intermodulation Distortion (SMTPE)

< 0.1 %

DIM 30

< 0.05 %

Signal-to-noise ratio (A–weighted)

> 109 dB

Input Sensitivity

+5.1 dBu

Weight Net

16.3 kg ( 35.94 lbs )

Dimensions (HxWxD)

88.1 x 483 x 421.5 mm
(3.47" x 19.02" x 16.59")
