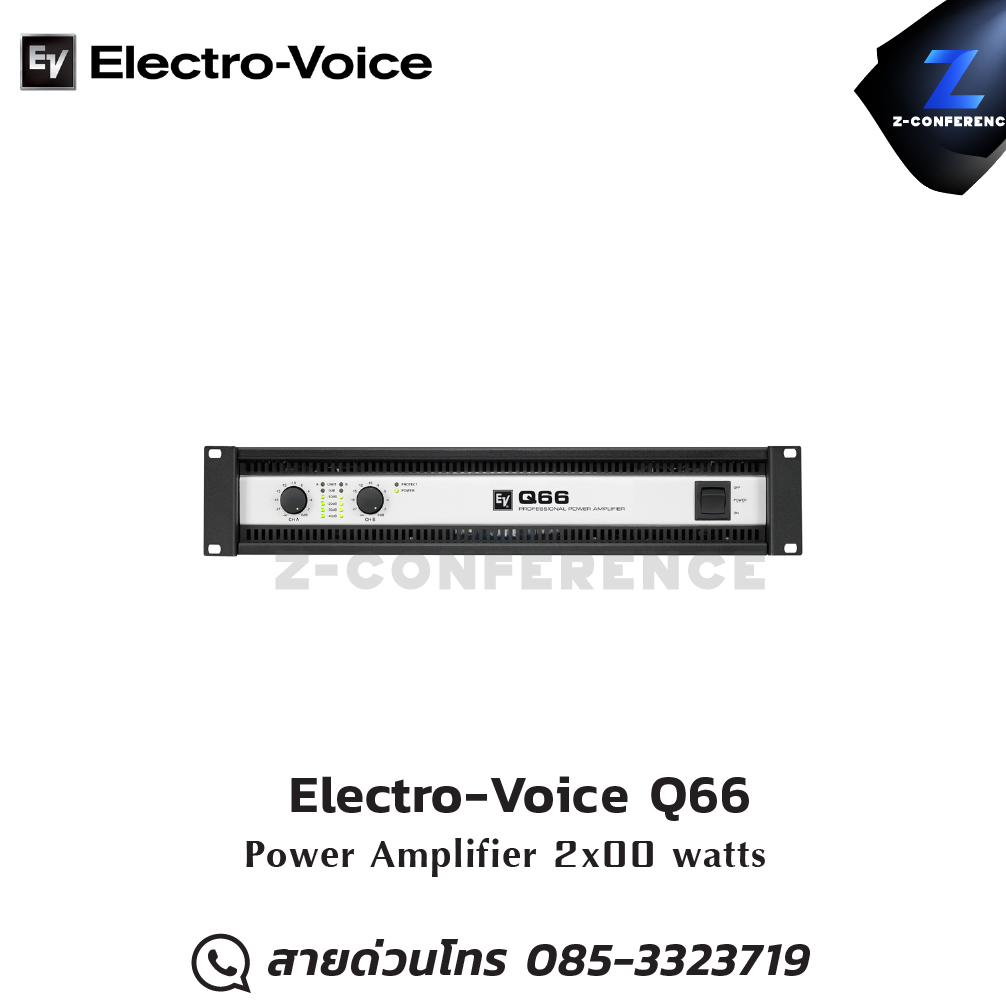

Electro-Voice Q66 Power Amplifier 2x600W , แอมป์ , amplifier, power amp, power amplifier

Amplifier Gain (dB)

32

Continuous rated power (1k Hz, THD 1%) 2Ω

900 Watts

Continuous rated power (1k Hz, THD 1%) 4Ω

600 Watts

Input Impedance (balanced)

20 kΩ

Continuous rated power (1k Hz, THD 1%) 8Ω

380 Watts

Continuous rated power
(20-20k Hz, THD<0,2%) 4Ω

500 Watts

Continuous rated power
(20-20k Hz, THD<0,2%) 8Ω

250 Watts

Maximum bridged output 4Ω

1700 Watts

Maximum bridged output 8Ω

1200 Watts

Slew Rate

> 26 V / µs

Electronics Type

Amplifier

Network Control (IRIS-Net)

No

Total harmonic distortion

< 0.03 %

Intermodulation Distortion (SMTPE)

< 0.1 %

Signal-to-noise ratio (A–weighted)

> 107 dB

Input Sensitivity

+3.1 dBu

Weight Net

14.8 kg ( 32.63 lbs )

Dimensions (HxWxD)

88.1 x 483 x 421.5 mm
(3.47" x 19.02" x 16.59")
