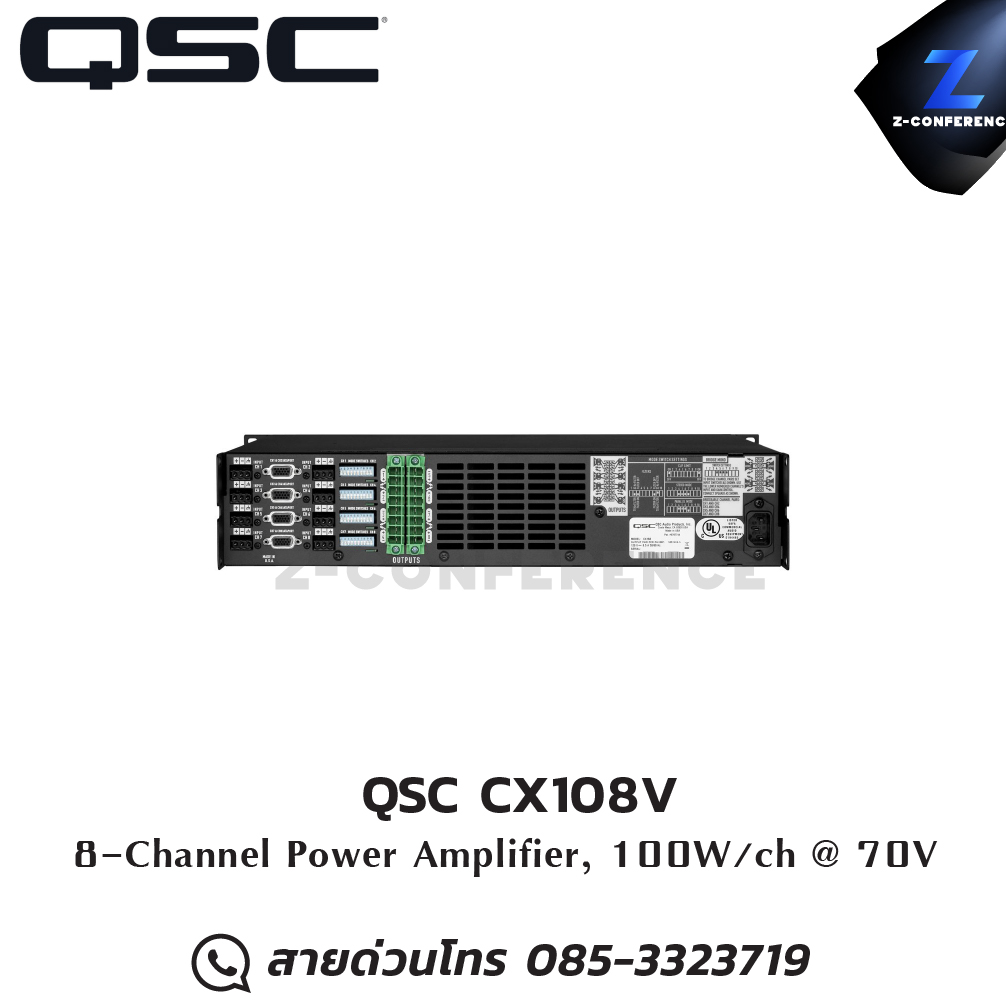

QSC CX108V 8Cn. Power Amplifier 100W/Ch. แอมป์ , amplifier, power amp, power amplifier

Features:

• 100 watts per channel at 70 volts (CX108V)
• Compact size - only two rack spaces and 14" deep forreduced rack space
• Channel pairs bridgeable for maximum flexibility
• Exclusive PowerLight switch-mode power supplytechnology for high performance and compact size
• Active Inrush Limiting eliminates AC inrush current,removing the need for expensive power sequencers
• Four HD15 DataPorts (one per channel pair) forQSControl computer control or QSC's signal processing accessories
• Custom integrated gain control security cover fortamper-proof installations
• 1 dB recessed detented gain controls for fast andaccurate settings
• Detachable Euro style input and output connectors
• DIP switch control for clip limiters, high-passfilters, bridge mono and parallel operation
• Selectable high-pass filters protect speakers andprevent speaker transformer saturation with minimal effect on program material(50 Hz or 75 Hz; CX108V)
• Comprehensive front panel indicators includingsignal, clip, bridge mono and parallel input LEDs
• Fully protected - including DC, infrasonic andultrasonic, thermal overload and short circuit protection
• High-performance Class AB+B complementary bipolaroutput circuitry
• Light weight - only 21 pounds (9.5 kg) for easierracking and shipping
• 3-year warranty plus optional 3-year extended service contract

Power

• Midband Rating, 70V 0.2% THD 20Hz-20kHz: 100W
• 140V 0.2% THD 20Hz-20kHz: 200W

Specifications

• Input Impedance: 6 kilohms unbalanced, 12k ohmsbalanced
• Input Connectors: 3-pin Euro-style detachableterminal blocks (one per channel)
• DataPort Connector: HD-15 Connector (Ch 1+2, 3+4,5+6, 7+8)
• Output Connector: Two 8-pin Euro-style detachableterminal blocks
• Front Controls: AC switch, Ch 1, 2, 3, 4, 5, 6, 7,& 8 gain knobs
• Rear Controls: DIP switches for Ch. 1 - Ch. 8, cliplimiter on/off, LF filter on/off, LF filter freq select 50 or 75 Hz, inputsparallel or stereo; bridge mode
• Amplifier Protection: Full short circuit, opencircuit, thermal, ultrasonic, and RF protection; Stable into reactive ormismatched loads
• Load Protection: On/off muting; individual channel DCfault blocking
• Dimensions (W x H x D): 19" x 3.5" x 14" (2 RU)
• Weight: 21 lbs net, 27 lbs shipping
