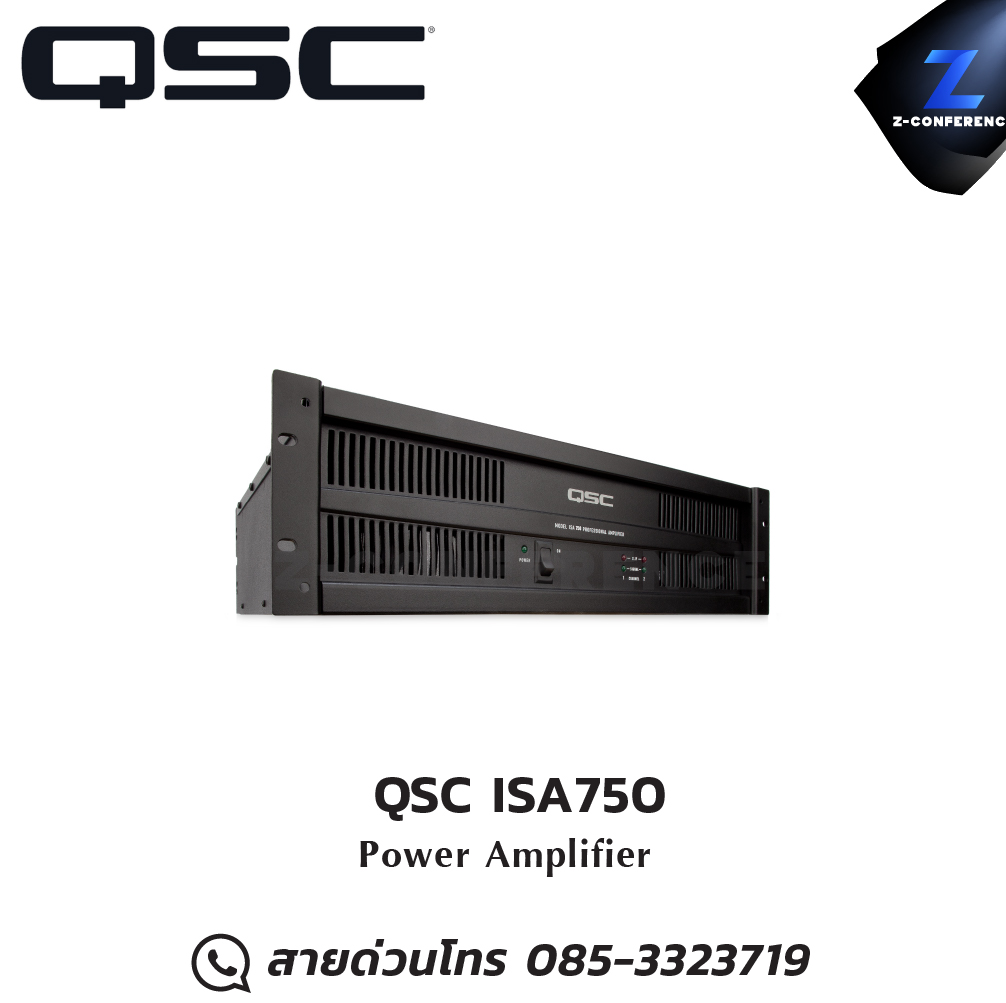

QSC ISA750 Power Amplifier , แอมป์ , amplifier, power amp, power amplifier

Features:

• Four models for low-impedance applications
• Three "Ti" versions include low-impedance and isolated 25, 70, and 100 volt outputs for distributed audio systems
• Rear panel gain controls for tamper resistant operation with 2 dB detents for quick and repeatable settings
• XLR and detachable Euro style input connectors
• DataPort V2 for use with DPV2-compatible signal processing accessories (XC-3, SF-3, LF-3) and DSP-3/DSP-4 (with external power supply)
• Independent defeatable clip limiters for reduced distortion
• Selectable high-pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (30 Hz or 70 Hz on non-"Ti" models, 50 Hz or 75 Hz on "Ti" models)
• Front panel indicators include power, signal, and clip
• Covered barrier strip output connectors for safety agency compliance
• Automatic variable-speed fan for quiet normal operation with maximum cooling on demand
• Rear-to-front air flow keeps equipment racks cool
• Stereo, Bridge, or Parallel operating modes
• Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
• 3-year warranty plus optional 3-year extended service contract

Specifications:

• 8 ohms 20Hz-20kHz 0.1% THD: 450W
• 4 ohms 20Hz-20kHz 0.1% THD: 650W
• 2 ohms 1kHz 1% THD: 1200W
• Bridged Mono 8 ohms 1kHz 0.1% THD: 1500W
• Bridged Mono 4 ohms 1kHz 1% THD: 2400W
• 140V or 200V 50 Hz-16kHz 0.5% THD: 1600W
• Signal to Noise (20Hz-20kHz): 100 dB
• Distortion (SMPTE-IM): < 0.02%
• Input Sensitivity @ 8 ohms: 1.07v (+2.8 dBu)
• Voltage Gain @ 8 ohms: 56.2x (35 dB)
• Output Circuitry: Class H
• Distortion (Typical):
      * 20 Hz-20 kHz: 10 dB below rated power: Less than 0.03% THD, 4 ohms and 8 ohms
      * 1.0 kHz and below: full rated power: Less than 0.03% THD, 4 ohms and 8 ohms
• Frequency Response, 10dB below rated output power: 20Hz-20kHz, +0/-1dB, -3 dB points: 5 Hz + 50 Hz
• Damping Factor (Direct Outputs): > 250 @ 8 ohms
• Output Regulation: < 1.5 dB
• Input Impedance: 10 k ohms unbalanced, 20 k ohms balanced
• Input Clipping: 10 Vrms (+22 dBu)
• Cooling: Continuously variable speed fan, back-to-front air flow
• Connectors, each channel:
      * Input: Active balanced; 3-pin Euro-style detachable terminal block and XLR (pin 2+)
      * Output: Covered barrier strips
      * DataPort V2: HD-15 connector
• Controls:
      * Front: AC switch
      * Rear: Ch. 1 and Ch. 2 gain knobs, 10-position DIP switch
• Indicators: PWR-ON Green LED, SIGNAL Green LED (1 per channel), CLIP Red LED (1 per channel)
• Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and RF protection; Stable into reactive or mismatched loads
• Power Requirements: 120, 230, VAC, 50-60 Hz
• Load Protection: On/off muting; Triac crowbar: ISA 750
• Rack-mount size: 3 RU
• Dimensions: 19" x 5.25" x 15.9" (48.3 x 13.3 x 40 cm)
• Weight: 47 lbs. (21.3 kg)
