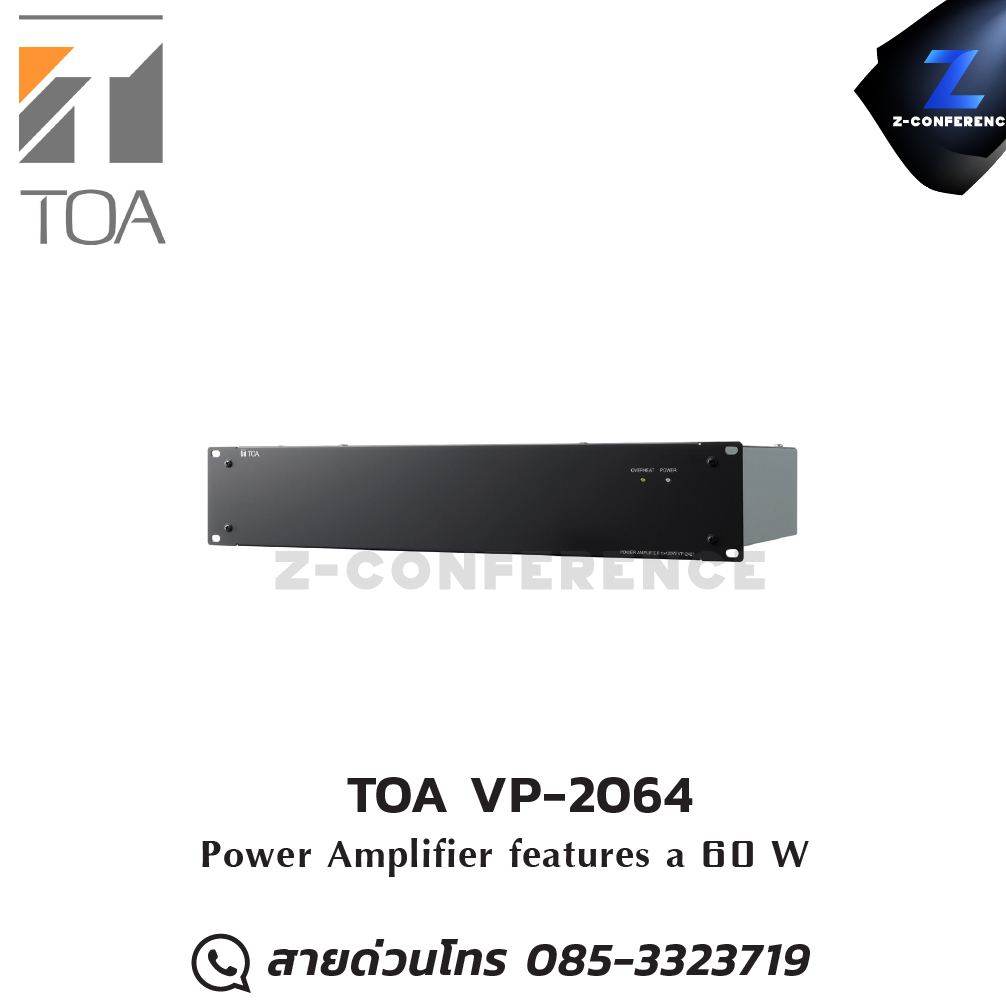

TOA VP-2064 Power Amplifier แอมป์ , amplifier, power amp, power amplifier

Power Source 28V DC (operating range: 19 - 44V DC)

M4 screw terminal, distance between barriers: 12mm

Current Consumption (EN60065) 4.8A in total

Rated Output Power  60W x 4

Output Voltage/Impedance   100V/167ohms, 70V/83ohms, 50V/41ohms

selectable by the internal wiring change)

Number of channels  4.

Input   Specified by input module VP-200VX

Number of Module slots       4, usable module: VP-200VX

Output Power amplifier output (speaker line): M3.5 screw terminal, distance between barriers: 8.8mm

Frequency response  40 - 16,000Hz, ±3dB (at 1/3 rated output)

Distortion       Under 1% (at rated output, 1kHz)

S/N Ratio       Over 80dB

Panel Indicator         Channel power indicator: 4 channels, dual color LED

Overheat indicator: Yellow LED

Operating temperature        0ºC to +40ºC

Finish  Panel: Surface-treated steel plate, black, 30% gloss, paint

Dimensions    482 (W) x 88.4 (H) x 340.5 (D)mm

Weight 11.2kg

Accessory      Rack mounting screw x 4, Fiber washer x 4
