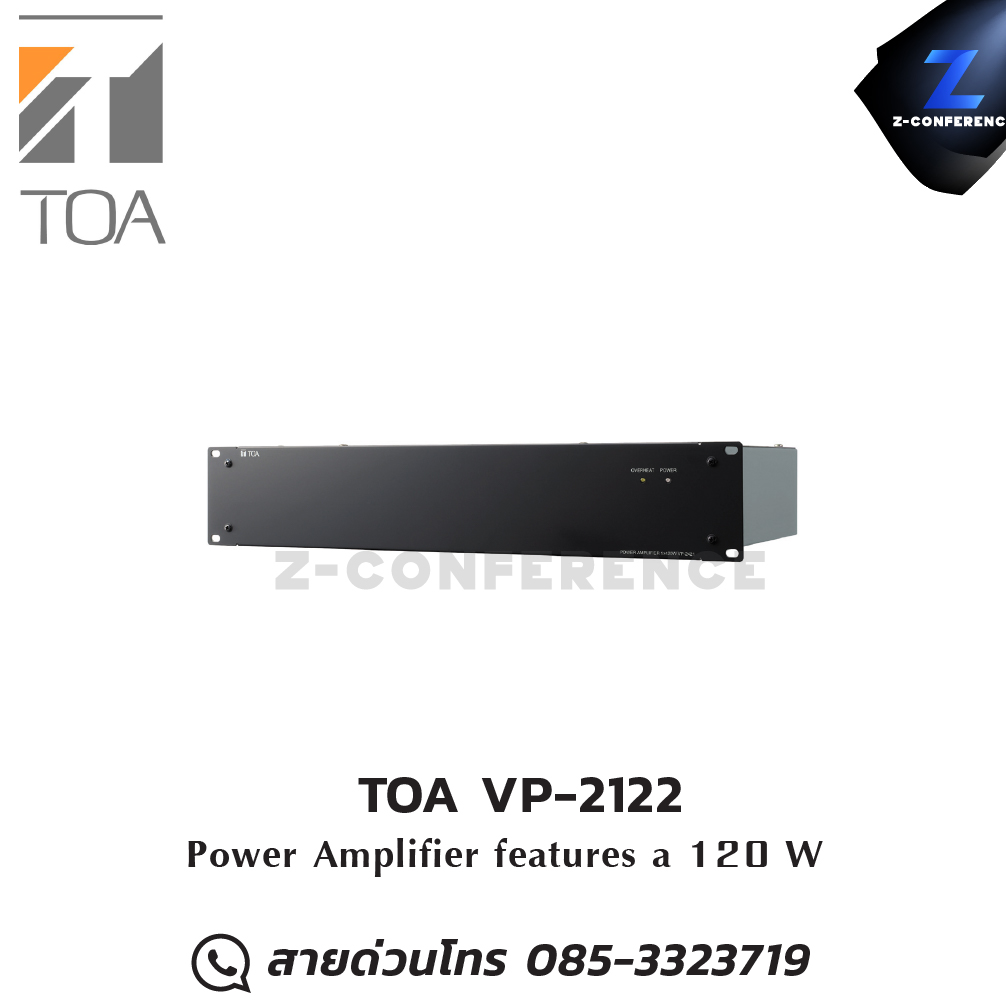

TOA VP-2122 Power Amplifier แอมป์ , amplifier, power amp, power amplifier

Power Source    28V DC (operating range: 19 - 44V DC)

M4 screw terminal, distance between barriers: 12mm

Current Consumption      (EN60065) 4.8A in total

Rated Output Power       120W x 2

Output Voltage/Impedance          100V/83 Ω, 70V/41ohms, 50V/21ohms

(selectable by the internal wiring change)

Number of channels       2

Input     Specified by input module VP-200VX

Number of Module slots  4, usable module: VP-200VX

Output   Power amplifier output (speaker line): M3.5 screw terminal, distance between barriers: 8.8mm

Frequency response       40 - 16,000Hz, ±3dB (at 1/3 rated output)

Distortion          Under 1% (at rated output, 1kHz)

S/N Ratio Over   80dB

Panel Indicator   Channel power indicator: 2 channels, dual color LED

Overheat indicator: Yellow LED

Operating temperature   0ºC to +40ºC

Finish    Panel: Surface-treated steel plate, black, 30% gloss, paint

Dimensions        482 (W) x 88.4 (H) x 340.5 (D)mm

Weight  9.1kg

Accessory          Rack mounting screw x 4, Fiber washer x 4
