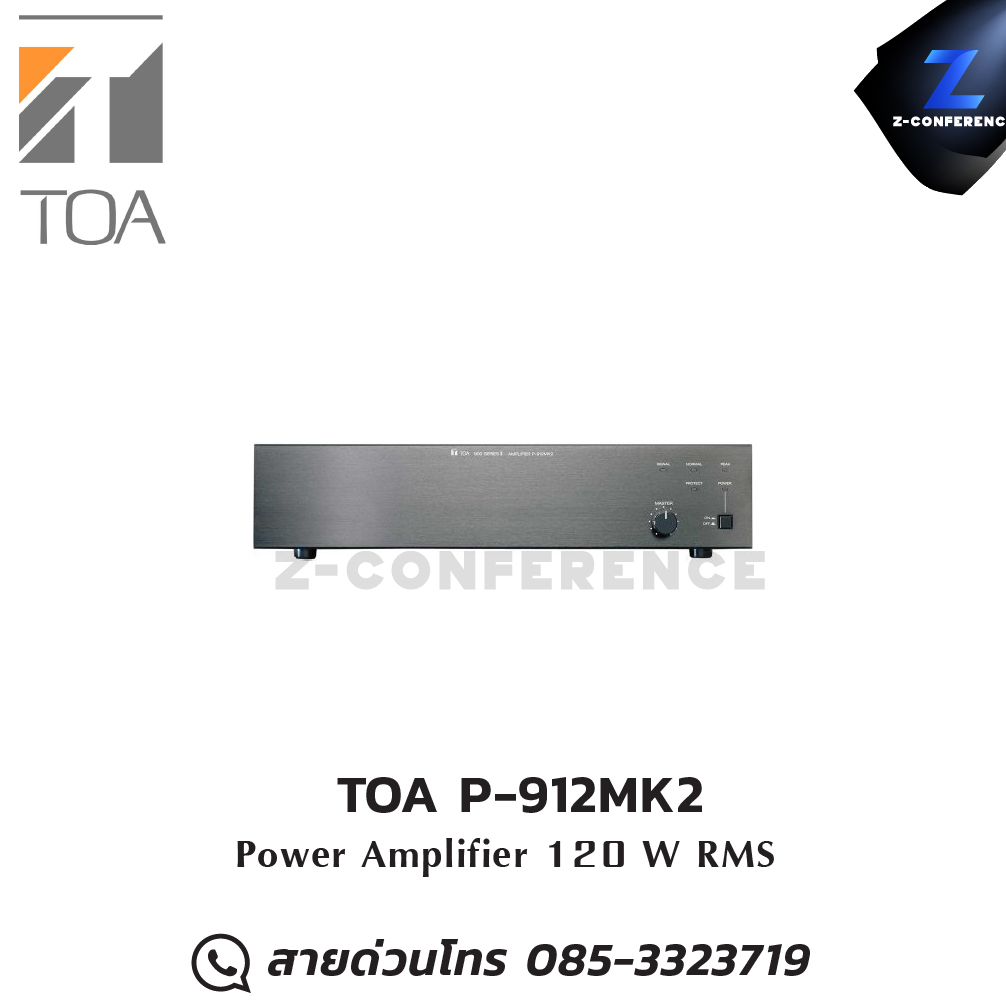

TOA P-912MK2 แอมป์ขยายเสียง แอมป์ , amplifier, power amp, power amplifier

Type     Power amplifier

Power Requirement        AC mains, 120 V, 60 Hz

Power Consumption        180 W

Output Power     120 W RMS

Power Band Width          (D) 20 〜 20,000 Hz, 0.5% THD

(T) 50 〜 20,000 Hz, 0.5% THD

Frequency Response      (D) 20 〜 20,000 Hz, ±1 dB

(T) 20 〜 15,000 Hz, ±1 dB, (T) 20 〜 20,000 Hz, +1 dB, -3 dB

T.H.D    0.01% at 1 kHz, rated output

Inputs   One Input Port : Port accepts any input module expect T-01.

One Direct Input

※ Use of direct input prohibits use of modular input port.

Input Sensitivity /Impedance       Input Port : 100 mV or 1000 mV (switchable)/10 kΩ

Direct Input : 100 mV or 1000 mV (switchable)/10 kΩ

Outputs(T)=Transformer (D)=Direct        Main (T) : 8 Ω, 25 and 70 volts, balanced

Main (D) : 4 Ω, unbalanced

Output Regulation(1kHz) (D) Less than 0.5 dB, no load to full load

(T) Less than 1.0 dB, no load to full load

S/N Ratio(Band Pass 20 〜 20,000 Hz)     Input level switch in 0 dBV (1000 mV) position : 108 dB

Input level switch in -20 dBV (100 mV) position : 90 dB

Controls 1 Input gain control 1 Input level switch

1 Power ON/OFF switch 1 Low-Cut switch

Indicators          1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED

Protection          Self-protection, with AC fuse (inside)

Connectors        Input : Card-edge connector and screw-terminal strip

Output : Screw-terminal strip

AC outlet : 3-pin grounding type

AC power cord/plug : SJT, 3-prong type

Temperature Range       -10℃ 〜 +60℃ (12゜F 〜 140゜F)

Finish    Black

Dimensions(W×H×D)     420(16.54") × 99.1(3.90") × 358(14.09") mm

Weight  10.9 kg (24.03 lb.)

Accessory          Volume control cover (YA-920)……1

Option   Rack mounting bracket (MB-25B)
