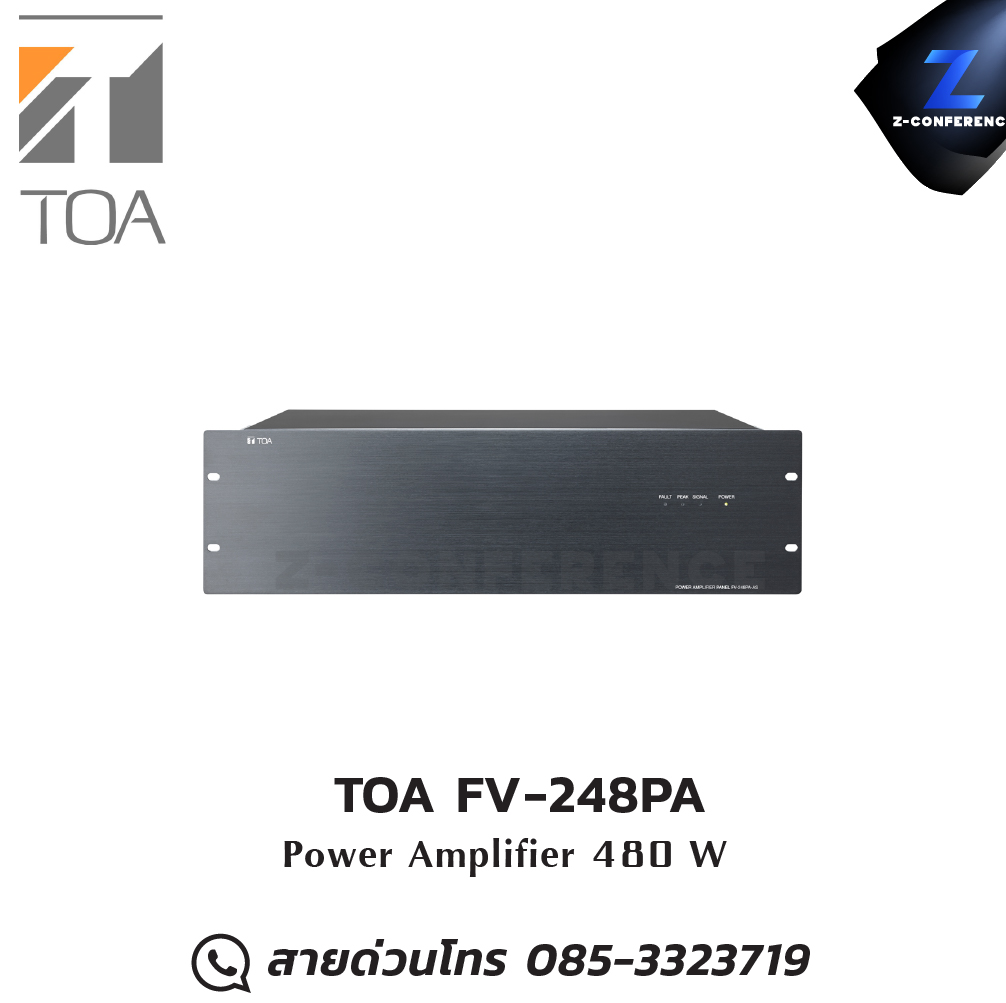

TOA FV-248PA-AS POWER AMPLIFIER แอมป์ , amplifier, power amp, power amplifier

Power Source

AC: 220 - 230 V AC, 50/60 Hz
DC: 24 V DC (operating range: 19.5 - 27 V)
      M4 screw terminal, distance between barriers: 12mm

Power Consumption

AC at rated output: 1110 W (condition: AC230V)
AC at no signal: 44 W
IEC60065: 480 W

Current Consumption

DC at rated output: 30 A (condition: DC27V)
DC at no signal: 1.0 A
IEC60065: 10.9 A

Rated Output

480 W

Input

2 inputs, 0 dB*, 20 kΩ, balanced, removable terminal plug (3 pins)
Input module VP-200VX (Option)

Output Impedance

10 Ω (70 V), 21 Ω (100 V)

Speaker Output

M4 screw terminal, distance between barriers : 12 mm

Control Output

Fault ouput :   Make : Normal, Break : Error or Power Off

S/N Ratio

Over 60 dB

Total Harmonic Distortion

Under 1% (1 kHz, 1/3 rated output)

Frequency Response

80 Hz - 15 kHz, ±3 dB, 1 kHz

Ventilation

Fan cooling

LED Indicator

Power (Green), Signal (Green), Peak (Red), Fault (Red)

Operating Temperature

0 ℃ to +40 ℃

Operating Humidity

Under 90% RH (no condensation)

Finish

Panel: Aluminum, black, alumite

Dimensions

482 (W) × 132 (H) × 333.2 (D) mm

Weight

18.5 kg

Accessory

Removable terminal plug (3 pins) x 3, Instruction manual x 1

Option

VP-200VX input module
