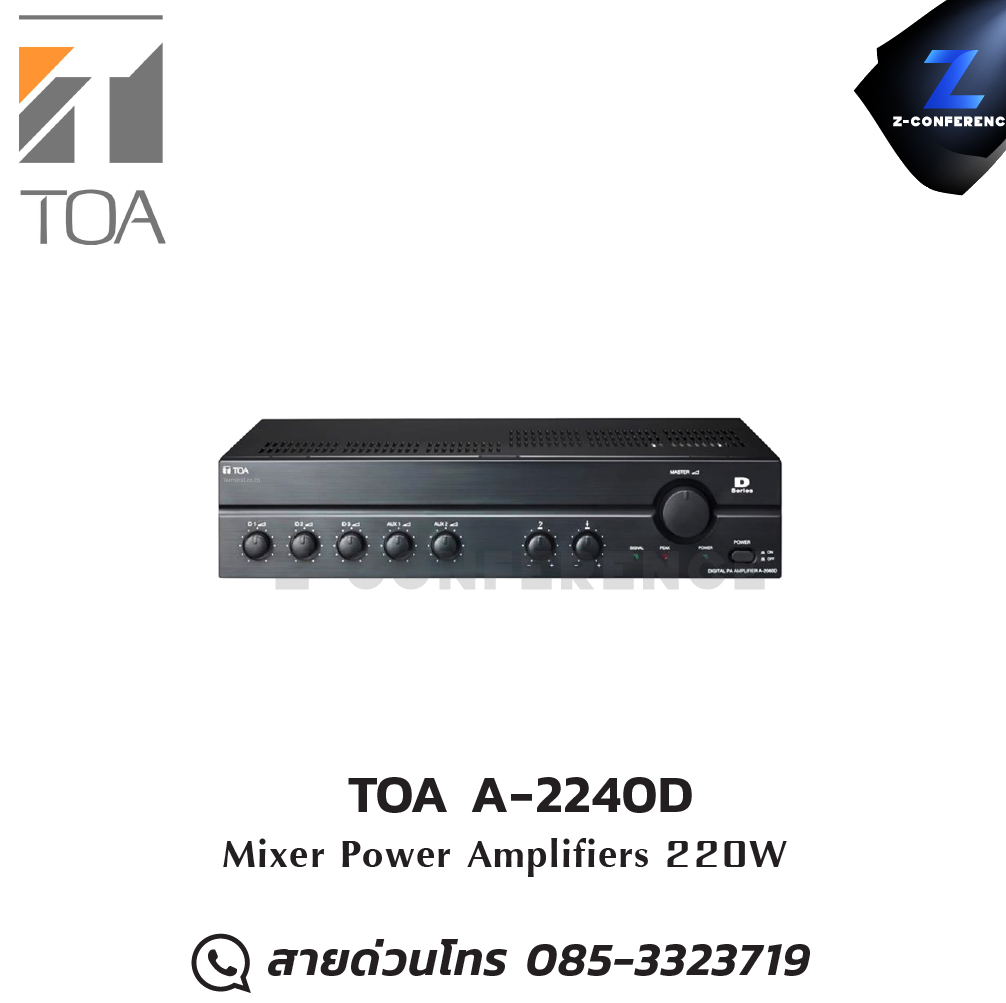

TOA A-2240D-AS เครื่องขยายเสียง 240W แอมป์ , amplifier, power amp, power amplifier

Power Source    220 - 240 V, 50/60Hz

Rated Output    240 W

Power Consumption      48 W (AC operation at 1/8 maximum output without clip)

Frequency Response     50 - 20,000 Hz, ±3 dB

Distortion            Under 1% at 1 kHz, 1/3 rated power

Input     MIC 1-3: -60 dB*, 600 Ω, balanced, 3P XLR

AUX 1-2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack

Output Speaker out: Balanced (floating)

High impedance: 42 Ω (100 V)

Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack

Phantom Power               DC +21 V (MIC 1)

S/N Ratio             Over 60 dB

Tone Control      Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Muting MIC 1: Mutes other input signals by 0-30 dB attenuation

Indicator              Power LED, peak LED, signal LED

Finish    Panel: ABS resin, black

Case: Steel plate, black

Dimensions        420 (W) × 100.6 (H) × 280.3 (D) mm (16.54" × 3.96" × 11.04")

Weight 4.0 kg (8.88 lb)
