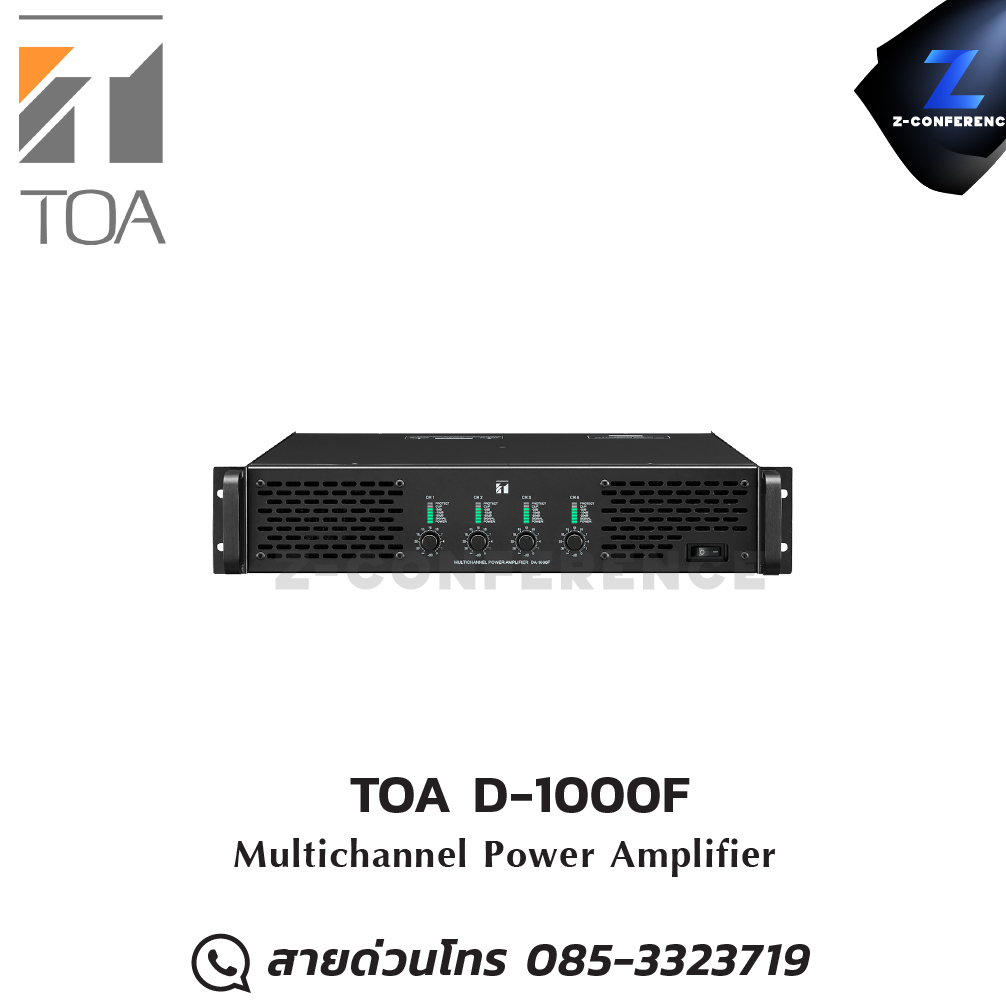

TOA D-1000F Power Amplifier แอมป์ , amplifier, power amp, power amplifier

Power Source    100 - 240 V AC, 50/60 Hz

Amplification System     Class D

Power Consumption      2000 W *1

Input     CH 1-4: 20kΩ (balanced) / 10kΩ (unbalanced), 0.775/1.0V/32dB*2, XLR-F connector

Output LINK CH 1-4: XLR-M connector

Speaker 1-4:

                   4 channels: 650 W × 4 (8 Ω)*3, 1000 W x 4 (4 Ω)*3

                   2 channels (BRIDGE): 2000 W × 2 (8 Ω)*3

                   NL4 SPEAKON connector

Frequency Response     20 Hz - 20 kHz (±3 dB)

Total Harmonic Distortion             ≤ 0.1 %

S/N Ratio             ≥ 100 dB

LED Indicator      Protect (Red) / Clip (Red) / -5dB (Green) / -10dB (Green) / -20dB (Green) / Signal (Green) / Power (Green)

Cooling Air flow from front to rear

Operating Temperature                0 ℃ to +35 ℃ (32 ゜F to 95 ゜F)

Operating Humidity        80 %RH or less (no condensation)

Finish    Case: Plated steel sheet, black

Dimensions        483 (W) × 89 (H) × 461 (D) mm

Weight 9.2 kg

Accessory            Power cable …1
