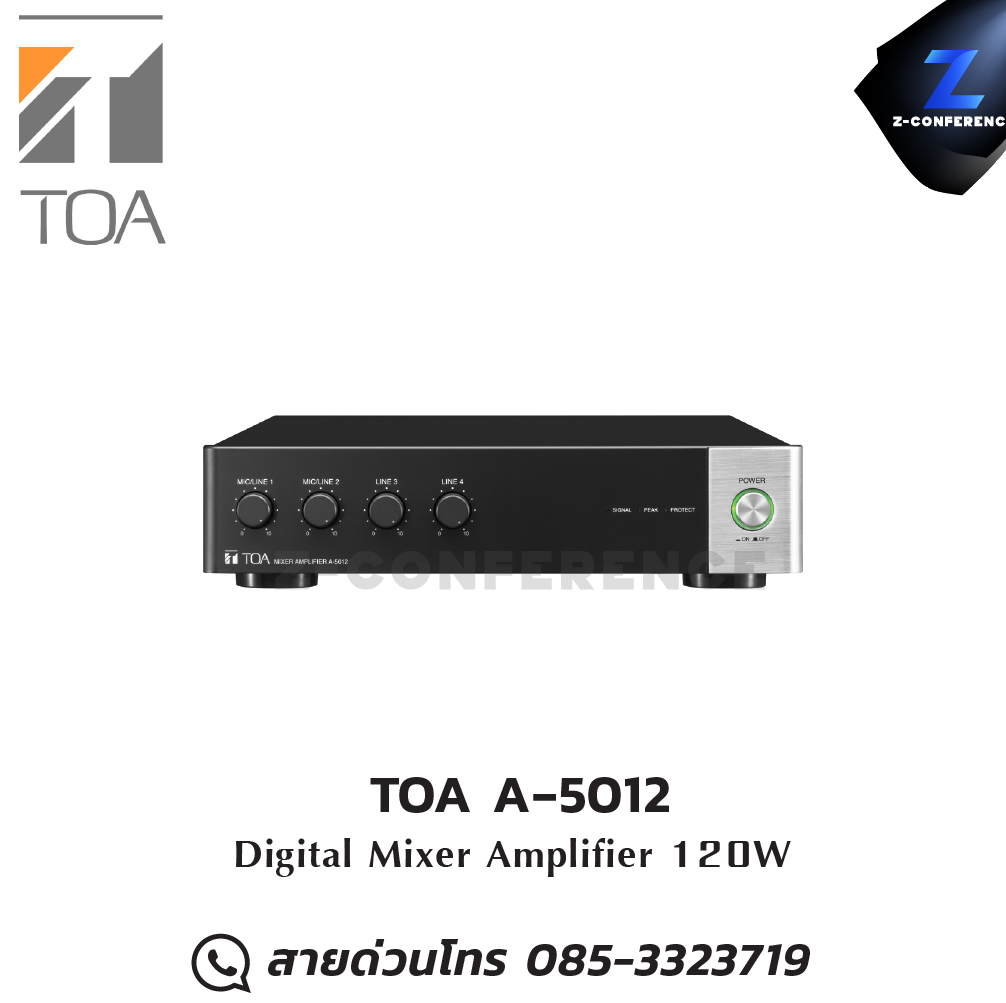

TOA A‐5012 Digital Mixer Amplifier มิกเซอร์ , mixer , มิกเครื่องเสียง , มิกเซอร์ดิจิตอล , มิ๊กดิจิตอล , แอมป์ , amplifier, power amp, power amplifier

Power Source    100-240 V AC, 50/60 Hz

Rated Output    120 W

Power/CurrentConsumption      207 W (rated output), 39 W (based on cULus standards)

Max. 3 A

Frequency Response     50 Hz - 20 kHz (1/8 rated output)

Distortion            1 % or less (1 kHz, rated output)

Input     INPUT 1, 2: MIC -60 dB(*1)

LINE -20 dB(*1) MIC/LINE selectable

2.2 kΩ, electronically-balanced, removable terminal block (5 pins)

INPUT 3, 4: LINE -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack

Output SPEAKER: 4 Ω, 70 V (42 Ω), 100 V (83 Ω), removable terminal block (5 pins)

Signal to Noise Ratio       MIC 1, 2: 50 dB or more

LINE 1 - 4: 70 dB or more

(A-weighted)

Function              Parametric equalizer: 5 points settable on each input and output

20 Hz - 20 kHz ±15 dB

Q: 0.267 - 69.249

Compressor: ON/OFF settable on Inputs 1 and 2 (OFF by default)

Threshold, Ratio, Attack time, Release time, and Gain are settable

independently on each input.

Control Mute control, Remote master volume control, Power ON/OFF switch, Ground lift

LED Indicator      Power indicator, Signal indicator, Peak indicator, Protect indicator

Network I/F       100BASE-TX

Operating Temperature                0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)

Operating Humidity        35 % to 80 %RH (no condensation)

Finish    Panel: PS resin, black

Case: Surface-treated steel plate, black, paint

Dimensions        210 (W) × 52.5 (H) × 375 (D) mm (8.27 × 2.07" × 14.76")"

Weight 3.9 kg (8.6 lb)

Accessory            CD (setting software) …1, Large type removable terminal plug (5 pins) …1, Small type removable terminal plug (5 pins) …2, Plain washer (*2) …6, Bracket mounting screw (M3 x 10) (*2) …6, Power supply cord (2 m (6.56 ft)) …1

Option  Half width blank panel: MB-15B-BK (for rack mounting one A-5012 unit) (*2)

Rack joint bracket: MB-15B-J (for rack mounting two A-5012 units) (*2)

Rack runner: YA-706
