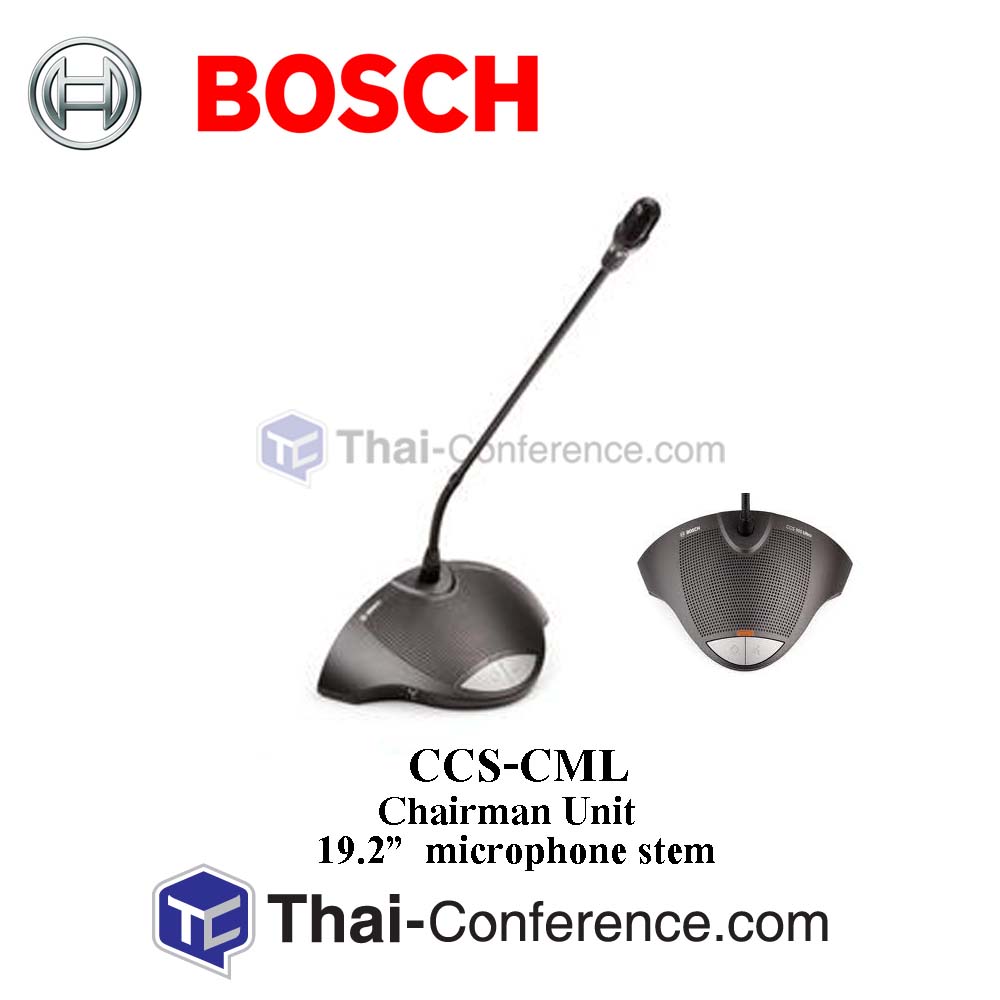

BOSCH CCS-CML ชุดประชุม เครื่องควบคุมและจ่ายกระแสไฟชุดประชุม Chairman Unit ไมค์ประชุม ชุดประชุม ไมค์ห้องประชุม ไมค์ conference

The Bosch CCS Chairman Unit is intended for use with the Bosch CCS 900 Conference System. Much like the Delegate Unit, The Chairman Unit features a built-in speaker and an adjustable gooseneck microphone. The Chairman Unit provides added muting control over delegates. Permanently or temporarily mute delegate microphones in order to establish control over dialog. The CCS Chairman Unit loudspeaker mutes automatically while in use, features a red LED ring to indicate power and a headphone output with dedicated level control.

-Incorporates all functions of the CCS‑Dx CCS delegate units (with the exception of the possible‑to‑speak functionality/LED)

-Priority button for chairman microphone

-Temporary or permanent muting of delegate microphones

-Optional chime tone facility for preceding chairman announcements

- การออกแบบที่ทันสมัยและไม่สร้างความรำคาญให้เข้ากับชุดตัวแทน CCS x Dx CCS

Technical specifications

Mechanical

Dimensions unit without

microphone (H x W x D)

71 x 220 x 140 mm (2.8 x 8.7 x 5.5 in)

Height with microphone

in horizontal position

134 mm (5.3 in)

Length of microphone

from mounting surface

 CCS‑CML

488 mm (19.2 in)

Weight approx. 1 kg (2.2 lb)

Mounting tabletop (portable or fixed)

Material (top) polymer

Material (base) painted metal

Color (base) charcoal (PH10736)

Color (top) charcoal (PH10736)

Ordering information

CCS‑CML CCS Chairman Unit Long Microphone

microphone stem length 488 mm (19.2 inch)

Order number CCS-CML
