The Bosch CCS-D Delegate Unit is intended for use with the Bosch CCS 900 Conference System. Delegate Unit features a built-in speaker and an adjustable gooseneck microphone. It Possible-To-Speak LED illuminates to indicate when it is possible to activate the microphone. The CCS-D Delegate Unit loudspeaker mutes automatically while in use, features a red LED ring to indicate power and a headphone output with dedicated level control.

-Unique, patent pending Possible‐To‐Speak indicator

-Compact, attractive design

-Built-in volume control for headphones

-Microphone with flexible stem and light ring

-Two headphone sockets

Technical specifications

Mechanical

Dimensions unit without

microphone (H x W x D)

71 x 220 x 140 mm (2.8 x 8.7 x 5.5 in)

Height with microphone

in horizontal position

134 mm (5.3 in)

Length of microphone

from mounting surface

 CCS‑DL

488 mm (19.2 in)

Weight approx. 1 kg (2.2 lb)

Mounting tabletop (portable or fixed)

Material (top) polymer

Material (base) painted metal

Color (top) charcoal (PH10736)

Color (base) charcoal (PH10736)

Ordering information

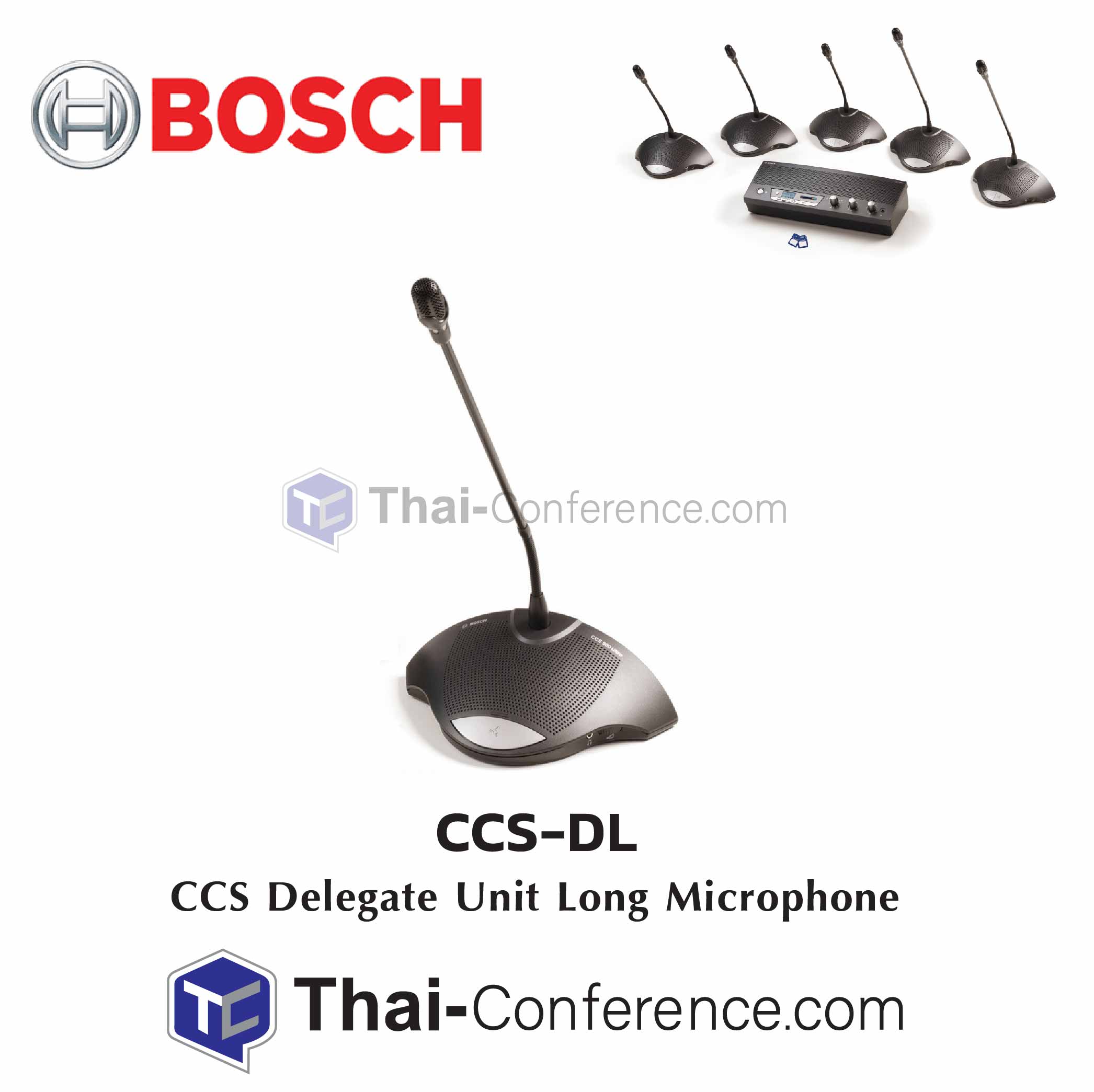

CCS‑DL CCS Delegate Unit Long Microphone

microphone stem length 488 mm (19.2 inch)

Order number CCS-DL
